H-Series
Turboprop engine family

Watch
GE bg-image

Engines on a mission

From corporate to charter operators, from skydiving to medical support and cargo transport, H-Series engine – a product of Avio Aero, a GE Aerospace company – is renowned for its reliability. The H-Series thrives in rugged conditions that require mission readiness, short takeoffs, weight variability and safe operation: in the hottest deserts, over the highest peaks and across the most remote archipelagos. Available in a range from 550 to 850 SHP, this turboprop engine family’s configuration allows seamless integration into a variety of airframe types.
    Download data sheet
    GE Aerospace
    Advanced turboprop
    propulsion technology

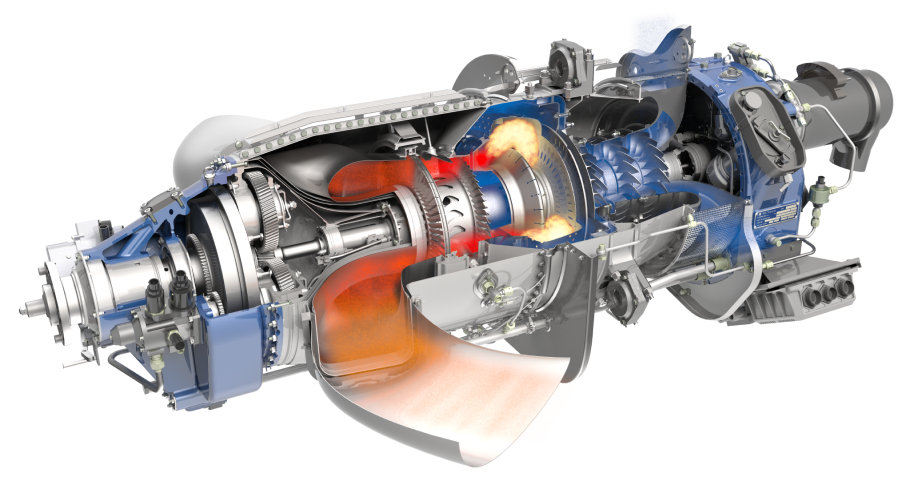

    The H-Series engine is a two-shaft, reverse flow engine with a free turbine, available with first-in-class Electronic Engine and Propeller Control (EEPC). The engine has an axial compressor and compressor turbine featuring 3D geometry design. Fuel is distributed to the chamber via the slinger ring combustor architecture, which simplifies maintenance and eliminates the need for recurrent fuel nozzle inspections. The propulsion section is powered by a single-stage turbine driving a two-stage planetary gearbox.
    GE Aerospace
    Electronic Controls
    The EEPC system, featuring fully integrated engine and propeller operations, provides safer operation and reduces pilot workload by simplifying engine operation with a single lever power control that enhances engine operability. An Aerobatic version of H-Series engine, with a unique multi attitude lubrification system designed to enable flight with zero gravity and strengthened structure for demanding aerobatic maneuvers is undergoing final development tests.
    GE Aerospace

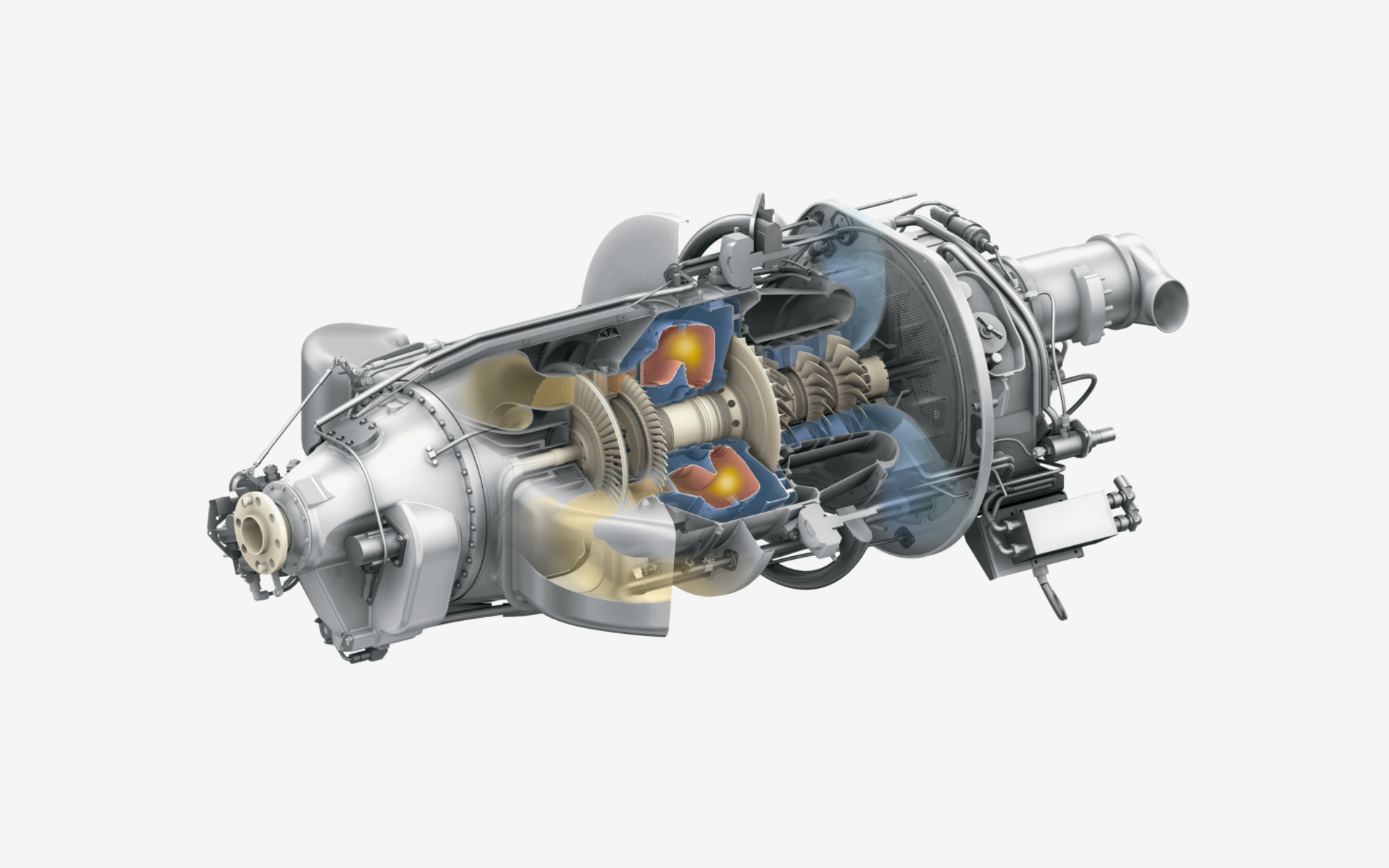

    Maintenance Simplicity
    From a pilot’s reduced workload in the cockpit to reduced engine noise in the cabin and industry-leading predictive engine analytics, airframers, passengers, and crew fly with confidence.

    GE Aerospace’s reliability and infused technology mean airlines and charter operators can fly on time and avoid maintenance that may otherwise take engines out of service. H-Series engines have no fuel nozzles and no hot section inspections, easing the burden of additional maintenance.

    Explore the H-Series engine

    GE Aerospace and Avio Aero have incorporated sophisticated technologies into the H-Series family models - H75, H80 and H85 - to advance a legacy of reliable power for turboprop aircraft.

    GE Aerospace Image
    Power

    - 750 to 850 SHP
    - 1,040 THP

    Combustor

    - Annular flow
    - Even thermal loading

    Turbine

    - High temp materials
    - Increased thermodynamic power

    Fuel Slinger

    - Even fuel distribution
    - No fuel nozzle maintenance

    Compressor

    - 3D Aero
    - Enhanced efficiency

    Control

    - Enhanced auto start
    - Optional EEPC

    GE Aerospace Image

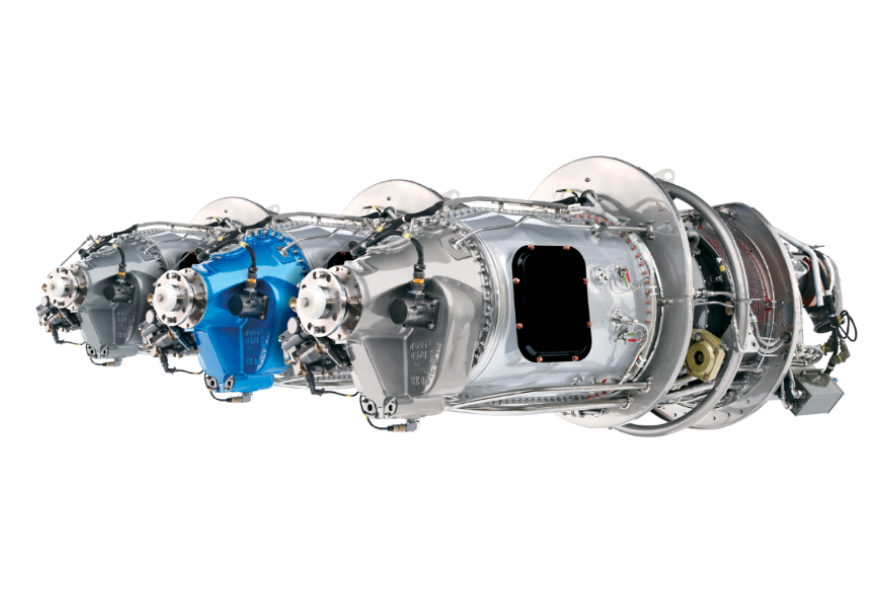

    Models H75, H80, H85


    GE Aerospace has incorporated sophisticated technologies into the H-Series to advance a legacy of reliable power for turboprop aircraft.

    GE Aerospace Image

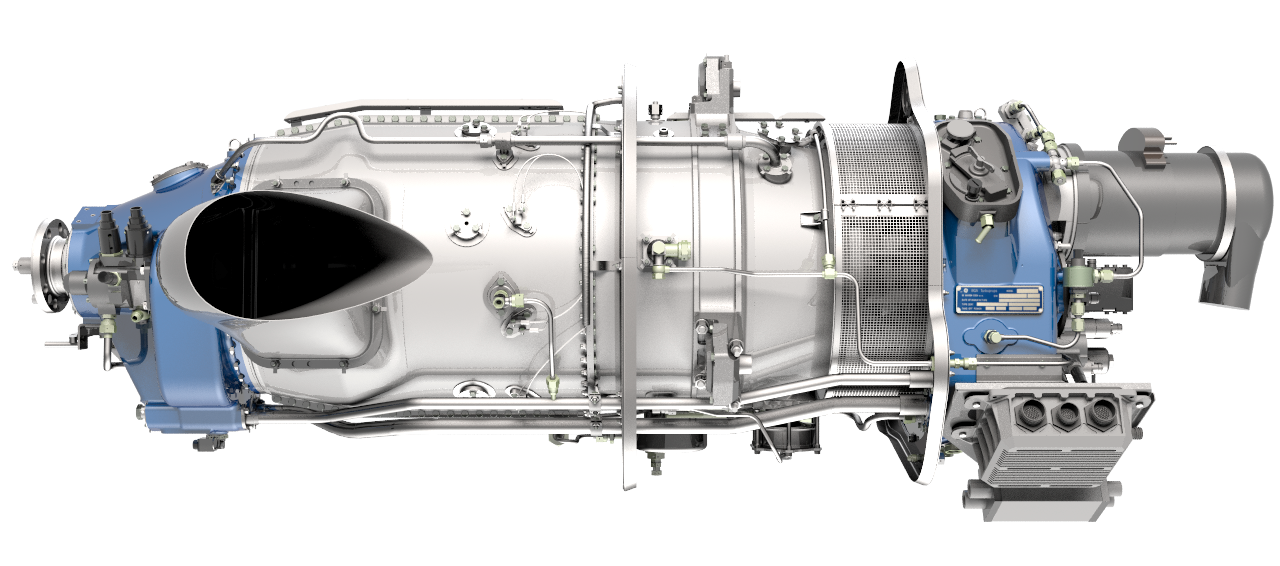

    EEPC-enabled engine


    A first in turboprops in 2018, GE Aerospace offers enhanced electronic engine and propeller control (EEPC) on its H-Series engines

    GE Aerospace Image

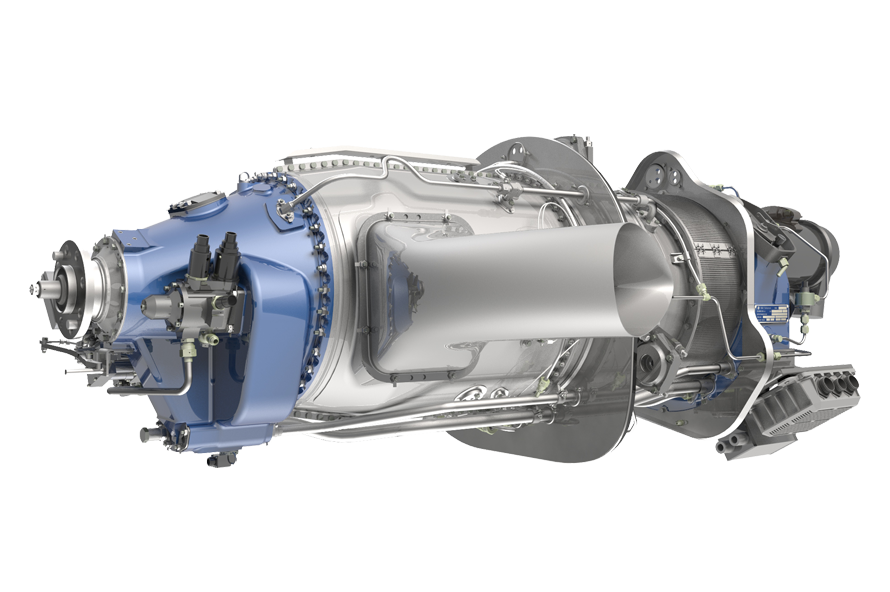

    Aerobatic engine


    When the aerobatic H-Series engine is certified, it will be the first electronic and engine propeller controlled (EEPC) aerobatic engine in its class.

    H-Series service centers

    The H-Series engine’s unique design provides more than just performance. With no fuel nozzles, it requires no hot section inspection and minimal maintenance between overhauls. This means operators can devote more time to their missions in the air. When customers do need assistance, GE Aerospace’s field service and customer support teams are available 24/7 and are backed by a global network of 22 authorized service centers across 12 countries, making repairs local and expedient. GE Aerospace offers two locations for overhaul: Prague, GE Aerospace’s production site, or Prime Turbines, GE Aerospace’s authorized repair and overhaul center in Texas.
